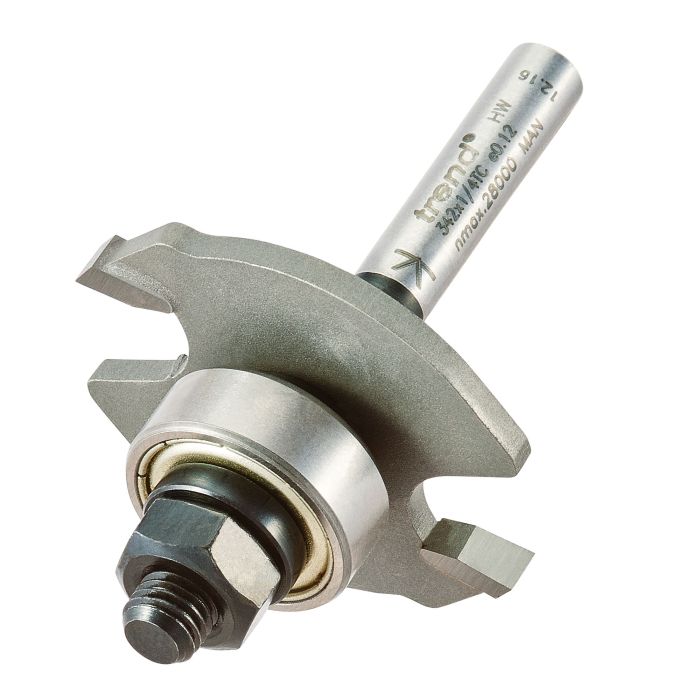

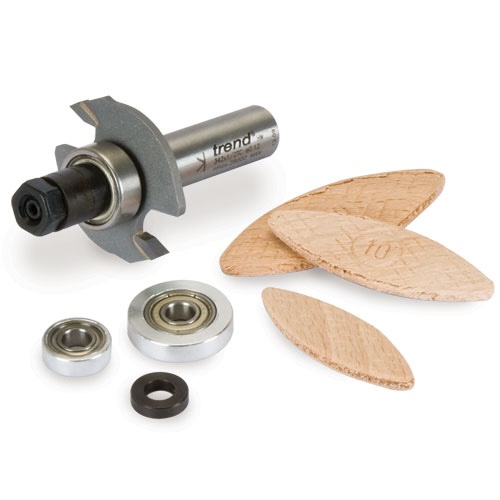

342X1/4TC - Biscuit jointer set

342X1/4TC
€102.46

For biscuit jointing of timber, man-made fibre and particle board with the router.

  • The set includes three sizes of bearing which set the correct depth of cut for the three sizes available.
  • A slightly longer cut than the length of the biscuit is required to allow some lateral play for easy alignment during assembly.
  • A water based glue (PVA) is used with the biscuits which will expand as the moisture is absorbed.
  • Boards are simply clamped together until glue is cured.
  • For larger boards, biscuits can be doubled up by making two passes.
D
40 mm
C
4 mm
B
15 mm
B2
19 mm
B3
23 mm
OL
63.5 mm
Shank Diameter
1/4 inch
Groove depths
8.5 mm, 10.5 mm & 12.5 mm
For biscuit sizes
No.0, 10 & 20
Product Image Product Ref Diagram No Description Quantity Required Price for 1
33/60X1/4 - Arbor 33/60 for 1/4 bore tools 33/60X1/4 A

Standard duty arbor with 1/4 inch spindle and spacers.

  • Enables mounting of 1/4 inch bore slotters with and without bearings in a variety of positions.
  • Use shims/spacers to prevent bearings with larger diameters, touching the tips of the slotters and also for accurate spacing.
1 €26.77
ANUT/33/60 - Arbor nut for 33/60 UNF 1/4 ANUT/33/60 B

Replacement arbor nut for the 33/60.

    1 €4.39
    B15 - Bearing 15mm diameter 1/4" bore B15 D

    Bearings are shielded to prevent penetration of dust and grease packed for life.

    • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
    • Scrape off any resin build-up.
    • Always check the tightness of the fixing screw before using cutter.
    1 €18.67
    B19 - Bearing 3/4" diameter 1/4" bore B19 D

    Trend Router Cutter Bearing - for 1/4in shank mounting

    • High quality ball bearing for free running against an edge to prevent heat build up.
    • 1/4in inside diameter for direct fit to router shanks and arbors.
    • 3/4in outside diameter for matched fit to trimming and templating cutters.
    • Bearings are grease packed for maximum efficiency and lifespan.
    • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
    1 €8.11
    B23 - Bearing 23mm diameter 1/4" bore B23 D

    Bearings are shielded to prevent penetration of dust and grease packed for life.

    • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
    • Scrape off any resin build-up.
    • Always check the tightness of the fixing screw before using cutter.
    1 €17.34

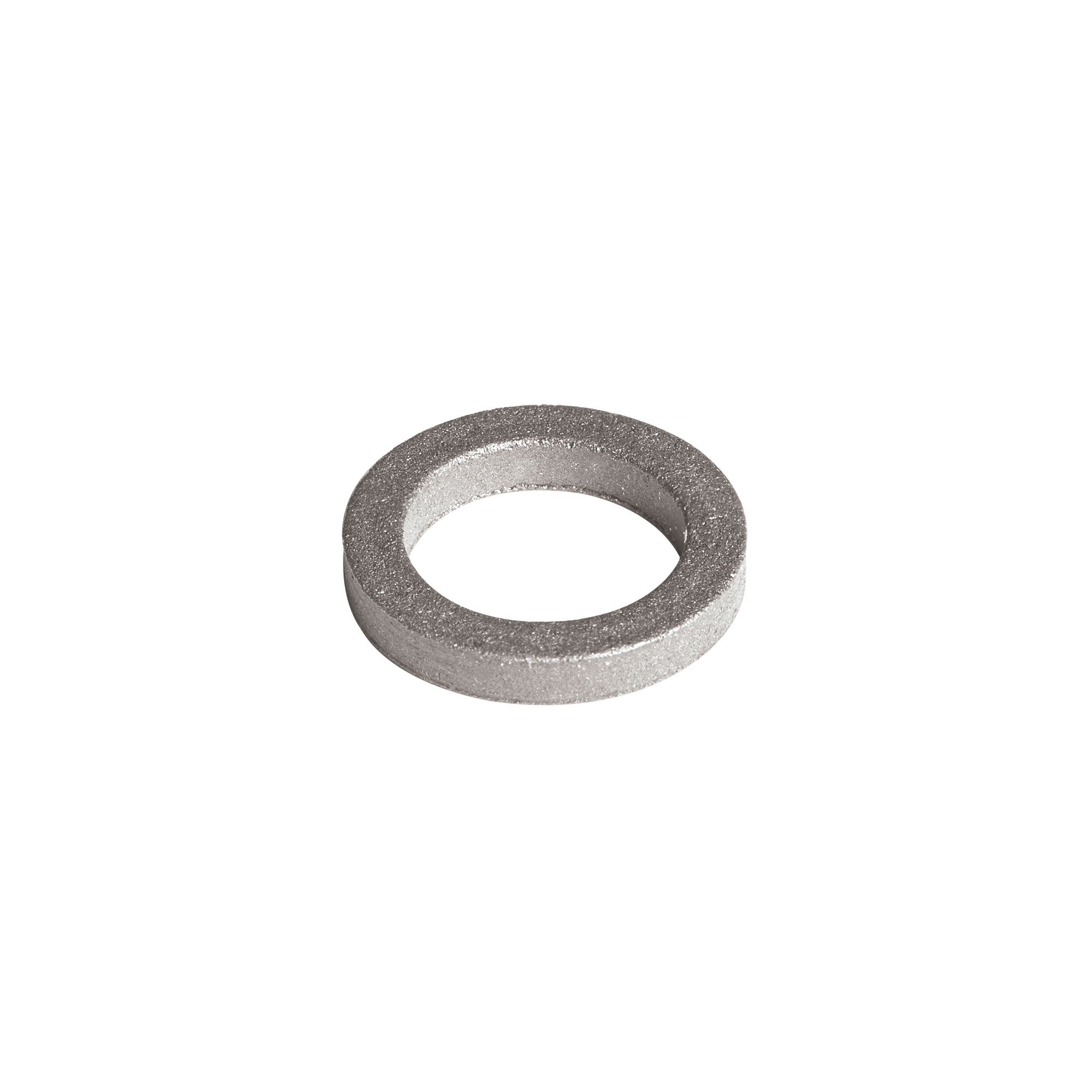

    BWASH/14 - Bearing washer 1/4" bore BWASH/14 F

    Replacement 1/4 inch bore bearing washer.

      1 €2.28

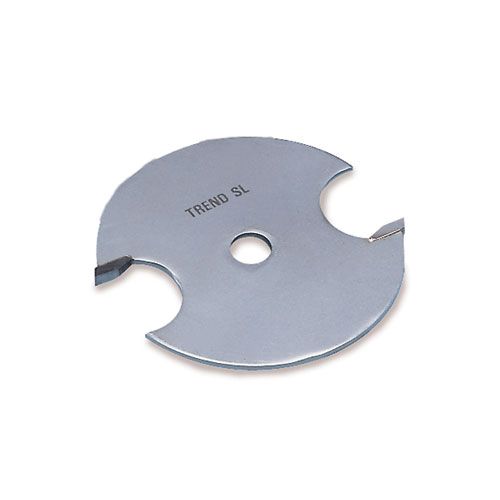

      SL/GG - Slotter 4.0mm kerf 1/4 bore SL/GG C

      All slotters are precision made in TCT grade for long life when cutting the most abrasive materials.

      • Requires an arbor Ref. 33/60 and suitable diameter bearing to govern depth of cut.
      1 €46.86
