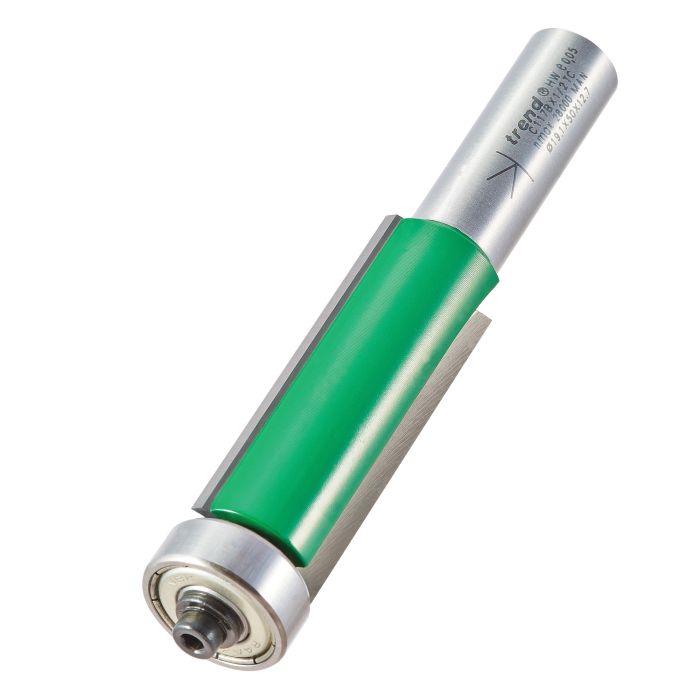

C117BX1/2TC - Guided trimmer 19.1mm diameter

C117BX1/2TC
€72.61

Used for trimming plastic or plywood overlays.

  • Also for copy profiling with a template.

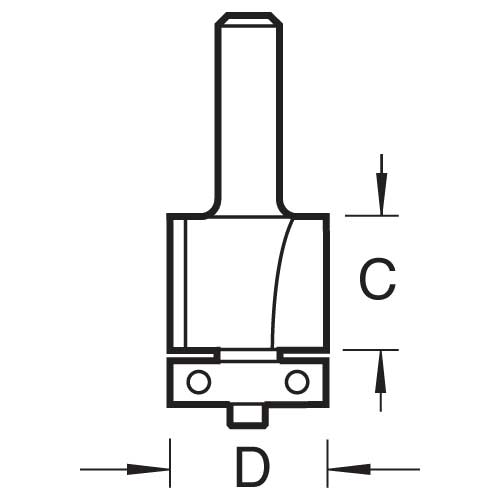

D1
3/4 inch
D1
19.1 mm
C
50 mm
OL
4 1/64 inch
OL
102 mm
B
15.9 mm
A
90 degrees
Shank Diameter
1/2
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B19 - Bearing 3/4" diameter 1/4" bore B19

Trend Router Cutter Bearing - for 1/4in shank mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 1/4in inside diameter for direct fit to router shanks and arbors.
  • 3/4in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€8.11
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.39

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
