C145X1/4TC - Slotting 6.3mm cut

C145X1/4TC
€41.50

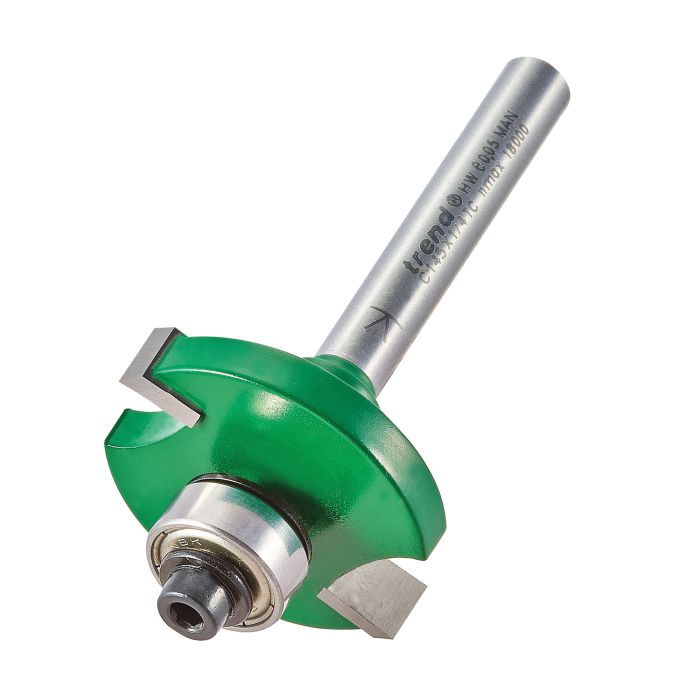

Trend Craft Pro 1/4in shank bearing guided slotting cutter - 31.8mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber based materials.
  • The fast, easy and accurate way to make slots and grooves in board edges, ideal for fitting panels.
  • Slot dimension matched to 6.3mm/1/4in thick sheet material with 9.5mm depth of cut. Bearings can be swapped to alter groove depth.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
31.8 mm
C
1/4 inch
C
6.3 mm
B
12.7 mm
E
9.5 mm
OL
65 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€8.11
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.39

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
