Group

C168X1/4TC - Guided trimmer 6.35mm diameter x 25.4mm

C168X1/4TC
€26.12

Trend Craft Pro 1/4in shank bearing guided flush trimming cutter - 6.3mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for clean, professional finish on timber, plastic laminates and veneers.
  • Bottom bearing guide for following an edge to trim laminates and veneers for a professional finish.
  • 6.3mm diameter to follow more intricate curves. 25.4mm cutting depth for replication of thin components with templates.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.

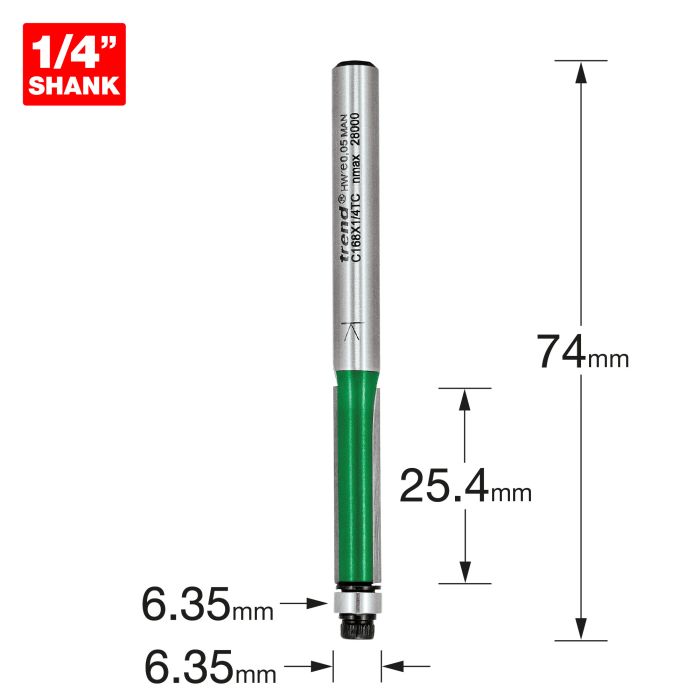

D
1/4 inch
D
6.35 mm
C
1 inch
C
25.4 mm
OL
2 7/8 inch
OL
74 mm
B
6.35 mm
A
90 degrees
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B63B - Bearing 1/4" diameter 1/8" bore B63B

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€10.16
SP-R - Spare part pack SP-R

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.39

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
