C197X1/2TC - Bearing guided chamfer angle=45 degrees

C197X1/2TC
€71.93

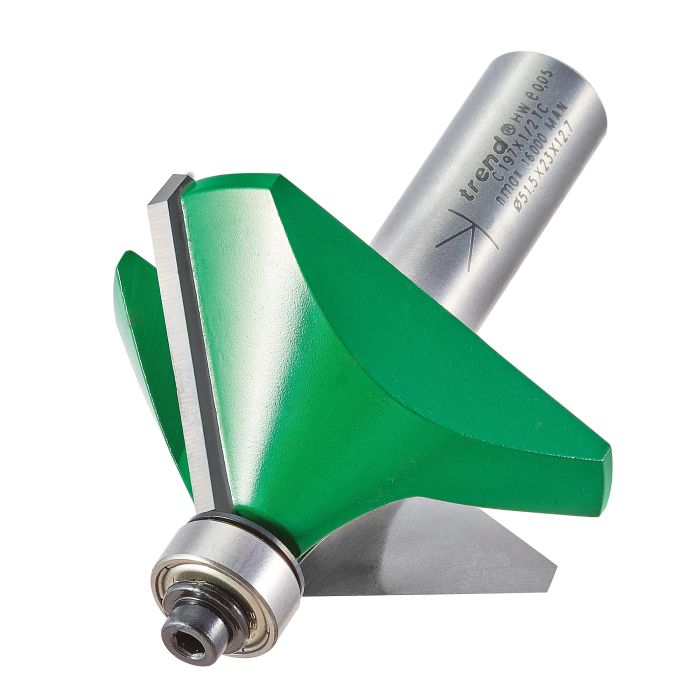

Trend Craft Pro 1/2in shank bearing guided chamfer cutter - 51mm diameter Two Flute Carbide tips.

  • 1/2in shank with 19.1mm cutting depth for heavy duty work, architectural joinery and general chamfering work.
  • 45° bearing guided chamfer profile follows straight and curved profiles for crisp, professional detailing work on an edge.
  • Ideal for table use to cut mitred corner joints for box making work.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/2in shank for use in bigger routers and heavier applications with 'K'mark shank to ensure safe working practices.
D
51 mm
C
19 mm
B
12.7 mm
A
45 degrees
OL
72.5 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€7.87
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.26
