CDJ300/01 - Craft dovetail 300mm 1/4 half blind
CDJ300/01

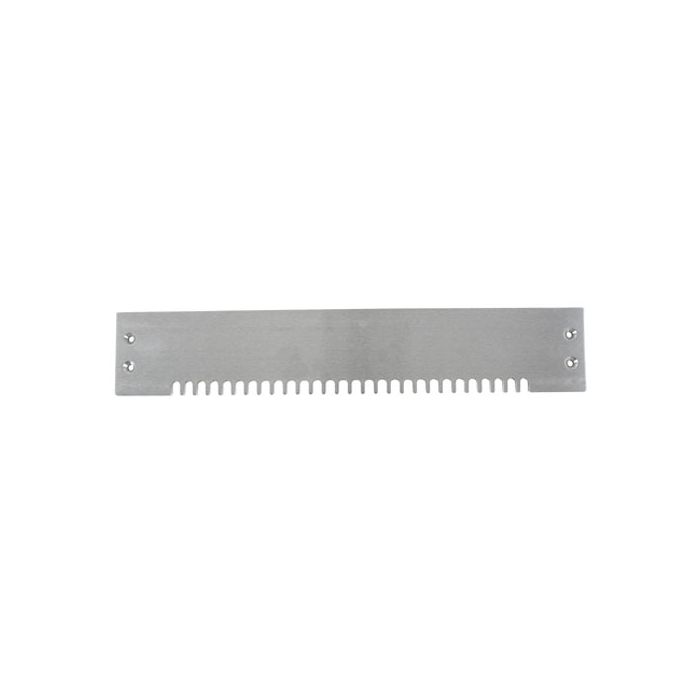

Precision made laser cut zinc plated steel template comb for the CDJ300.
- A 6.35mm (1/4 inch) lapped dovetail joint.
- Material thickness.
- 8 mm - 12 mm
- Material width up to
- 300 mm
Supplied with edge guides and 7.8mm guide bush
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
C154X1/4TC | 029 | These dovetail cutters produce a tight reliable joint for drawers, boxes etc.
|
1 | €29.14 |
|
WP-CDJ300/09 | 009 | Replacement comb bracket for the CDJ300. |
2 | €8.06 |
|
WP-CDJ300/26 | 026 | Green edge guide for the CDJ300. |
2 | €6.98 |
|
WP-CDJ300/27 | 027 | Green edge guide for the CDJ300. |
2 | €6.98 |
|
WP-SCW/09 | 021 | Replacement screw. |
2 | €1.27 |
