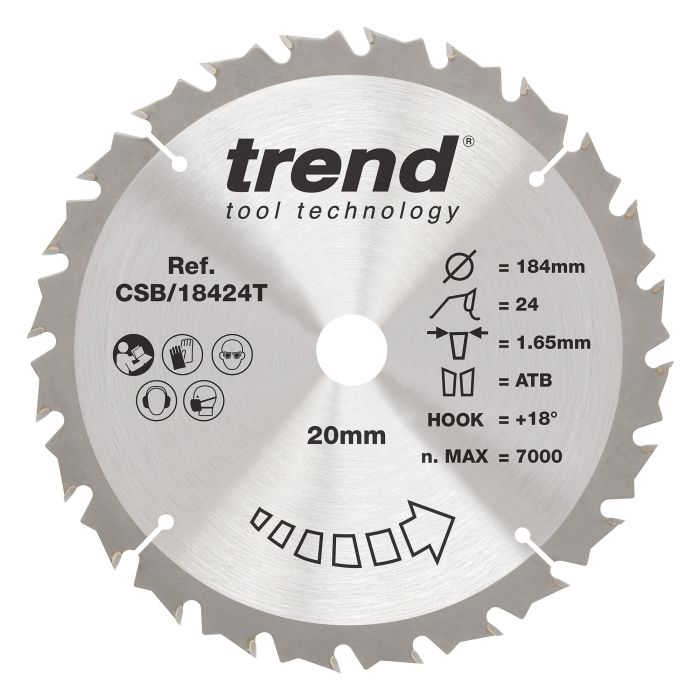

CSB/18424T - Trend Wood Cordless Circular Saw Blade 184mm x 20mm x 24T
A range of thin kerf tungsten carbide tipped blades for wood and wood-based materials. For use in cordless circular, plunge and table saws, and available in a range of finishes. Ideal for ripping and trimming softwood, hardwood, plywood, MDF and hardboard.
- Alternate top bevel (ATB) tooth form delivers a clean, safe and efficient cutting action in hand-held circular and table saws.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Thin kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Anti-kickback shoulders* limit feed-speeds to minimise kickback (low tooth count blades only).
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Dewalt DCS575-XE, Dewalt DCS576-XE, Dewalt DCS578-XE, Dewalt DCS579-XE
Cordless TCT Sawblades
A range of Tungsten Carbide Tipped blades for crosscutting & ripping wood and wood-based materials using cordless mitre and circular saws
Cordless Timber Universal Sawblades
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with a positive hook delivers an efficient cutting action for fast stock removal. A combination variant with an Alternate Top Bevel +Raker (ATBR) Profile with a positive hook is also available.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- D
- 7 1/4 inch
- D
- 184 mm
- Bore
- 20 mm
- Kerf
- 1.8 mm
- Plate thick
- 1.2 mm
- No. of Teeth
- 24
- Tooth form
- ATB
- Hook
- 15 degrees
- Quick Selector No.
- T12.1
- Colour Code
- Blue
- Type
- General Purpose
- Cut Finish
- Medium/coarse
- Max rpm
- 9500
