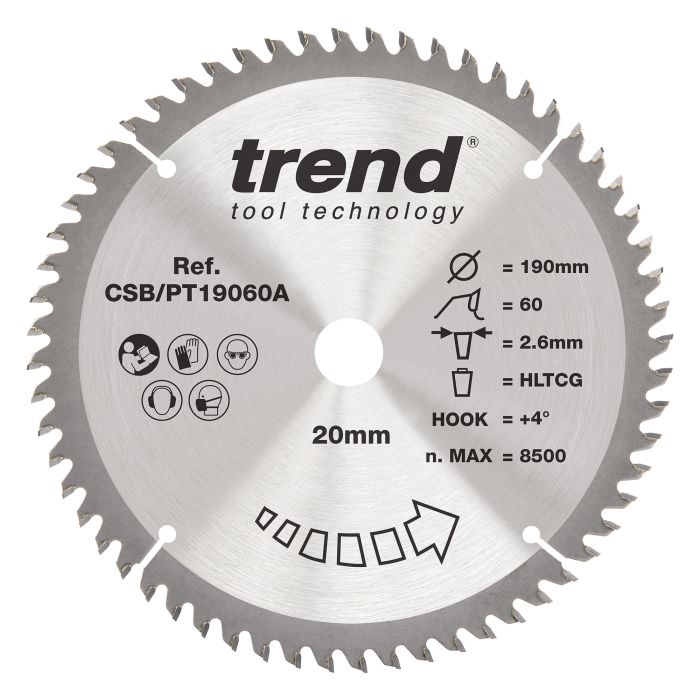

CSB/PT19060A - Trend Laminate/HPL Circular Saw Blade 190mm x 20mm x 60T
CSB/PT19060A
A range of tungsten carbide tipped saw blades for cutting laminated and resin-based materials. For use in circular, plunge and table saws, Trend Laminate & HPL blades deliver precise, clean cuts. Ideal for laminated and veneered panels, laminated chipboard worktop and compact laminate.
- Triple chip ground (TCG) tooth form with +4° hook delivers an ultra-fine finish in hard materials.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Einhell TP-CS 18/190 Li BL, Hikoki C3607DB, Makita HS004G
DIMENSIONS:
- D1
- 7 1/2 inches
- D1
- 190 mm
- Bore
- 20 mm
- Kerf
- 2.6 mm
- Plate thick
- 1.6 mm
- No. of Teeth
- 60
- Tooth Form
- HLTCG
- Hook Angle
- 4 degrees
