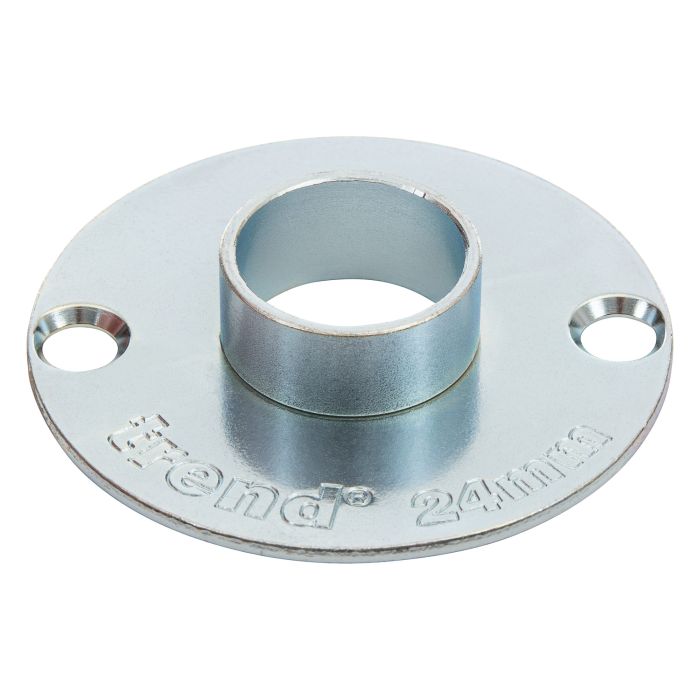

GB240 - Guide bush 24mm dia x 10mm (use for R10 radius hinge)
GB240
Guide bush guides the router when using a template.
- Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
- Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
- Longer spigot on bush gives increased control.
- Ideal for use with Trend Hinge jigs with a 20mm diameter cutter for radius hinges.
- Outside diameter
- 24 mm
- Inner diameter
- 22 mm
- Projects from plate
- 10 mm
- Plate diameter
- 60 mm
- Csk screw hole centres
- 50 mm
