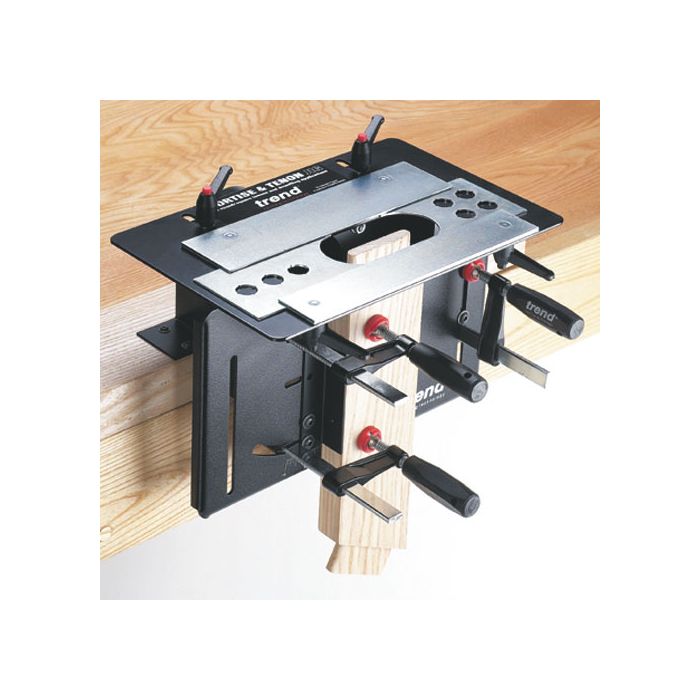

MT/JIG - Mortise and Tenon Jig (Imperial Size)

MT/JIG
€239.98

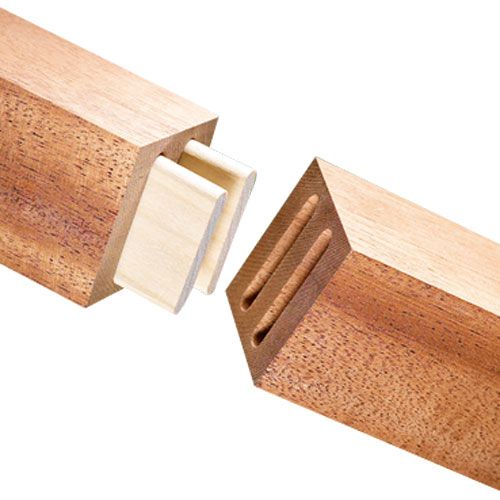

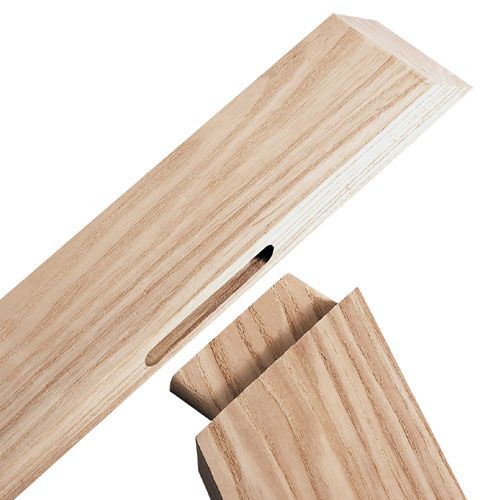

Enables mortise & tenons and dowel joints to be cut with a router.

  • Ideal for cabinet, chair and table.
  • CNC precision manufactured plates and body.
  • One set-up for both mortise and tenon giving perfectly fitting joints.
  • Fully adjustable for compound angle joints up to 45 degree.
  • Reversible templates to produce round and square end tenons.
  • Templates can be used for accurate dowelling applications.
  • Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).
  • Guide bushes are included but cutters are required.
  • A Unibase may be required for certain makes & models of router.
  • All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026).
  • The width of the tenon is adjusted by using different guide bush diameters.
  • Jig requires:

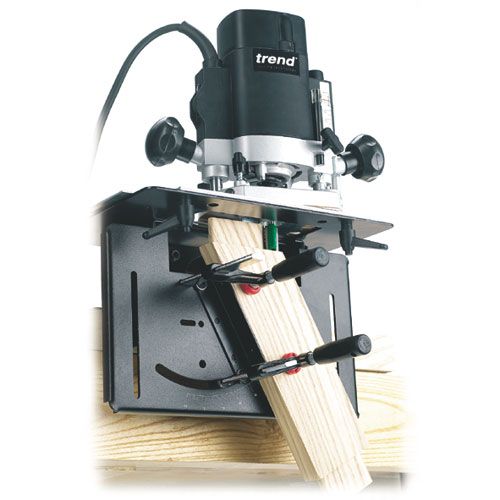

  • A portable plunge router with 6.35 mm (1/4 inch) shank capacity.
Material thickness min.
12 mm
Material thickness max.
47 mm
Tenon thickness min.
4.8 mm
Tenon thickness max.
16 mm

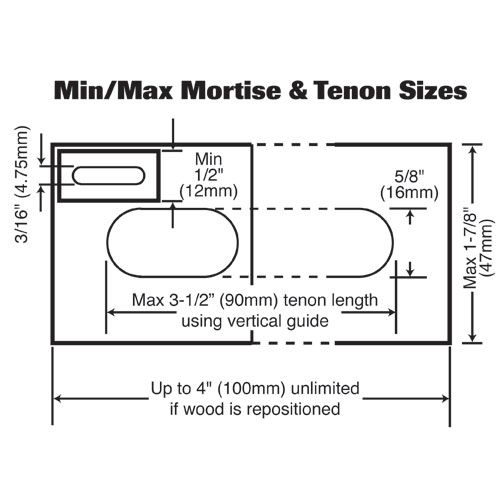

Tenon width max. using vertical guide+
90 mm
Tenon length max.++
Approx. 25 mm
Mortise length max. using vertical guide+++
90 mm
Angle tilt compound
-10 degree to 45 degrees

++ depends on cut length and plunge depth of the router.

+++unlimited if vertical guide removed and wood repositioned.

Product Image Product Ref Diagram No Description Quantity Required Price for 1
CR/KB/PK8 - Craft adjustable lever male M6 x 15 4 Pack CR/KB/PK8 017

Made from reinforced plastic with lift and lock ratchet system, with a steel studding.

    2 €12.26
    CR/KB/PK9 - Craft adjustable lever female M6 4 pack CR/KB/PK9 019

    Made from reinforced plastic with lift and lock ratchet system, with a steel tapped insert.

      2 €12.26
      GB/COLL/25454 - Guide bush collar 25.4mm to 53.9mm GB/COLL/25454 025

      Aluminium collar to fit guide bushes.

      • Enables single shaped templates to be used to cut perfectly matching pocket & inlay.
      • Collars have integral rubber 'O' rings to ensure collar secures onto guide bush.
      • Templates should be made with suitable sized corners for the collar being used.
      • The correct diameter straight cutter as indicated should always be used.
      • Guide bush not included.
      1 €10.70
      GB254 - Guide bush 25.4mm (1 Inch) diameter GB254 024

      Guide bush guides the router when using a template.

      • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
      • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
      1 €13.93
      WP-MT/01A - F clamp interim for MT/JIG WP-MT/01A 001A

      F clamp interim for the MT/JIG.

      • Through tapped hole design.
      • Zinc plated steel bar with cast steel head and jaw.
      • Soft grip handle for better grip and more clamping force.
      • Ball joint swivel clamping jaw.
      • Groove in the serrated bar to allow easier sliding of moving jaw.
      • For use with MT/JIG, MS/P/350R and MS/WTBR.
      4 €15.60
      WP-MT/02/UK - MT/JIG set-up bar WP-MT/02/UK 002

      Set-up bar for the MT/JIG with imperial and metric measurements.

        1 €14.74
        WP-MT/03 - MT/JIG Trend label WP-MT/03 003

        Replacement Trend label for the MT/JIG.

          1 €1.22
          WP-MT/04 - Main body MT/JIG WP-MT/04 004

          Replacement main body for the MT/JIG.

            1 €52.67
            WP-MT/05 - Vertical guide MT/JIG WP-MT/05 005

            Replacement vertical guide for the MT/JIG.

              1 €17.06
              WP-MT/06 - Inner body MT/JIG WP-MT/06 006

              Replacement inner body for the MT/JIG.

                1 €34.79
                WP-MT/10 - Pivot bush MT/JIG WP-MT/10 010

                Replacement pivot bush for the MT/JIG.

                  3 €2.35
                  WP-MT/11 - F clamp square cap MT/JIG WP-MT/11 011

                  Replacement 'F' clamp square cap for the MT/JIG.

                    1 €1.25
                    WP-MT/12 - Back clamp plate MT/JIG WP-MT/12 012

                    Replacement back clamp for the MT/JIG.

                      1 €16.90
                      WP-MT/15 - Template long MT/JIG WP-MT/15 015

                      Replacement long template for the MT/JIG.

                        1 €26.87
                        WP-MT/16 - Template short MT/JIG WP-MT/16 016

                        Replacement short template for the MT/JIG.

                          1 €26.87
                          WP-MT/23/UK - Guide bush set plastic Imp 5 off WP-MT/23/UK 023

                          Replacement guide bush set for the MT/JIG.

                            2 €39.24
                            WP-MT/28 - Clamping bar shims MT/JIG WP-MT/28 028

                            Replacement clamping bar shims for the MT/JIG.

                              2 €2.35
                              WP-SCW/108 - No.10 x 3/4 pan Pozi self tapping screw WP-SCW/108 027

                              Replacement machine screw.

                                4 €1.25
                                WP-SCW/73 - M6 x 12mm button flange socket screw WP-SCW/73 022

                                Replacement socket button flange screw.

                                  6 €1.25
                                  WP-SCW/75 - M6 x 16mm socket button screw  for MT/JIG WP-SCW/75 018

                                  Replacement socket button screw.

                                    3 €1.25
                                    WP-WASH/12 - Washer for M6 Form C 6.5mm ID x 14mm OD WP-WASH/12 021

                                    Replacement washer.

                                      2 €1.19
