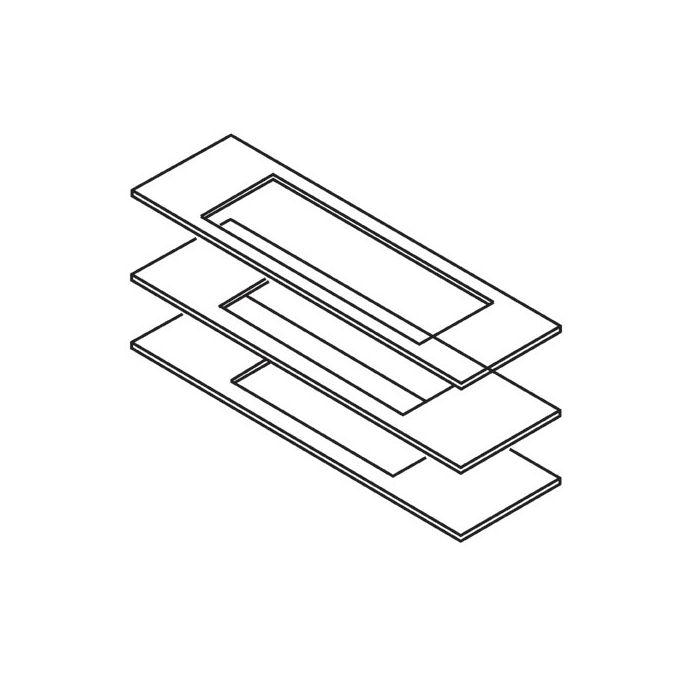

WP-LOCK/T/SET - Lock template set (16 pieces)

Includes templates for locks having the following face-plate dimensions:

Metric (Imperial approx.) (D x OL)

Template

22.2x156 mm (7/8"x 6 1/8")

1

22.5x152.5 mm (7/8"x 6")

2

25.4x121 mm (1"x 4 3/4")

3

25.4x127.5 mm (1"x 5")

4

25.4x133.5 mm (1"x 5 1/4")

5

25.4x145 mm (1"x 5 3/4")

6

25.4x153 mm (1"x 6")

7

25.4x156.5 mm (1"x 6")

8

25.4x165.5 mm (1"x 6 1/2")

9

25.4x177 mm (1"x 7")

10

25x57.5 mm (1"x 2 1/4")

11 UPPER

26x56.5 mm (1"x 2 1/4")

11 LOWER

25.6x162mm (1"x 6 3/8")

12

Mortise Lock Dimensions

Imperial (Metric) (D x OL)

Template

16x72 mm* (5/8" x 2 7/8")

A

16x107 mm* (5/8" x 4 1/4")

B

19x78 mm* (3/4" x 3 1/8")

C

19x109 mm* (3/4" x 4 1/4")

D

*These are maximum mortise lock case (body) lengths, unless radius ends are squared with a chisel. Actual length of mortise is 7mm longer.
