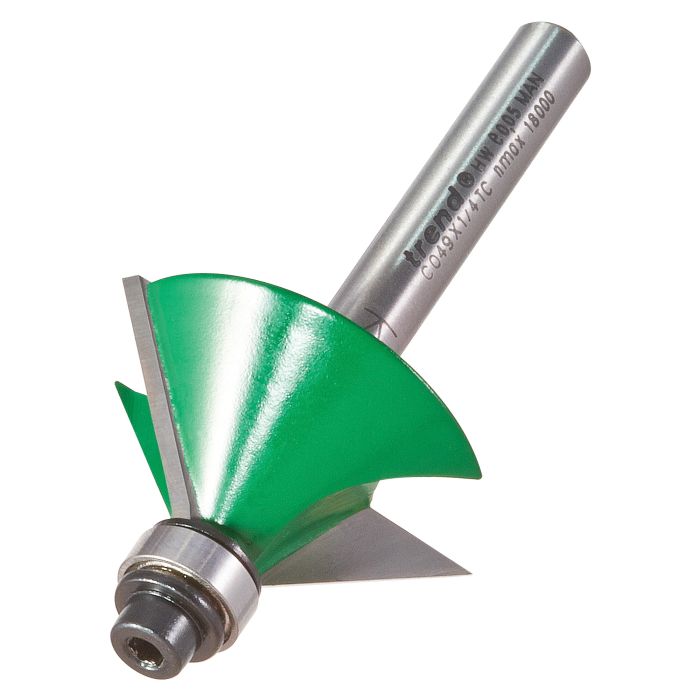

C049X1/4TC - Self guided chamfer angle=45 degrees x 12.7mm Cut

C049X1/4TC
€43.49

Trend Craft Pro 1/4in shank bearing guided chamfer cutter 32mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber based materials.
  • 45° bearing guided chamfer profile follows straight and curved profiles for crisp, professional detailing work on an edge.
  • 12.7mm cutting depth allows light arrising through to heavy chamfering; a must have cutter for any router owner.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
32 mm
C
1/2 inch
C
12.7 mm
B
9.5 mm
A
45 degrees
OL
62 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€9.86
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.26

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
