Group

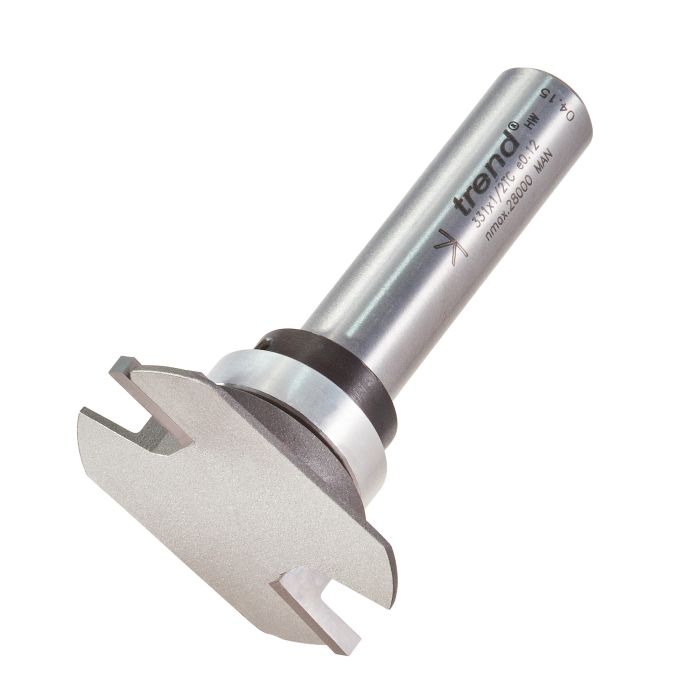

331X1/2TC - Aquamac 63 recessor 41.3mm diameter x 4.8mm cut

331X1/2TC
€145.21

Trend weather seal recessing tool is designed to accomodate the popular Schlegel Aquamac 63 or Exitex Aquatex P6 weather strip system and allows for a particularly small gap between the sash and frame.

  • The slot can be positioned part way down the side of the rebate, or at the bottom of the rebate.
  • Ref. 331 comes complete with a guide-bearing to reduce setting-up time.
D
41.3 mm
D2
28.3 mm
C
4.8 mm
C2
2.7 mm
OL
67 mm
B
22 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B22C - Bearing 22mm diameter 1/2" bore B22C

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€25.13

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
