Group

C075X8MMTC - Rounding over 4.8mm radius x 12.7mm cut

C075X8MMTC
€46.49

Self-guiding cutters for rounding over edges do not require a side fence.

  • They are supplied with two bearings.
  • Use the larger bearing for a round-over.
  • If the cutter is lowered, a top quirk can be produced.
  • Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

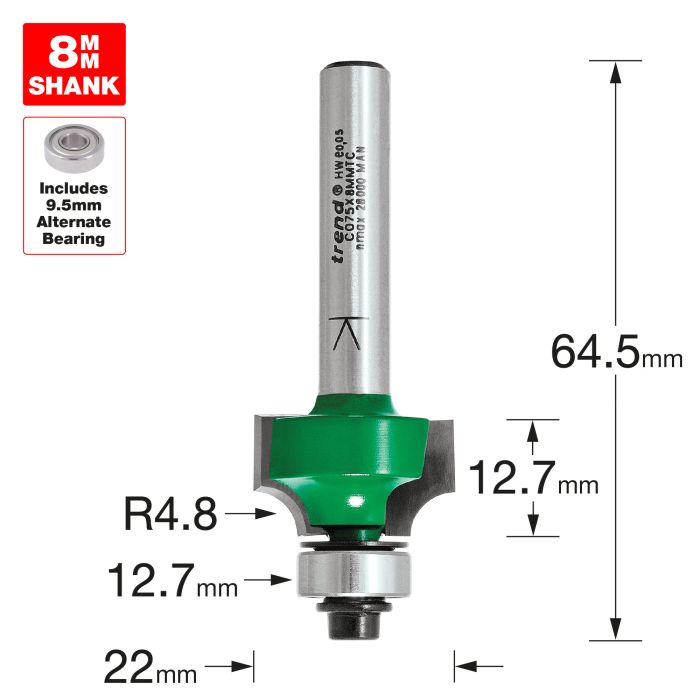

D
22.0 mm
C
1/2 inch
C
12.7 mm
B
9.5 mm
B2
12.7 mm
R
3/16 inch
R
4.8 mm
OL
64.5 mm
Shank Diameter
8 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€7.87
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€9.86
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€4.26

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
