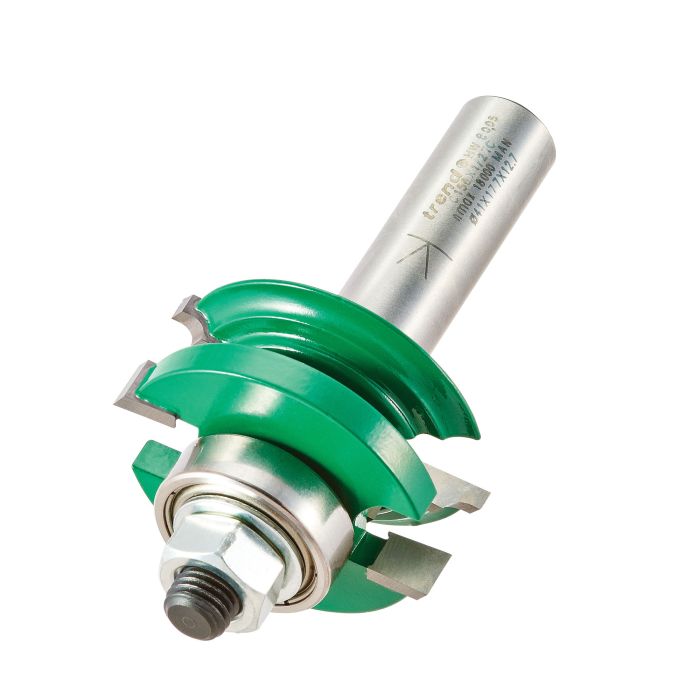

C156X1/2TC - Profile scriber flat classic set
C156X1/2TC
The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
- Cuts both parts of the joint by reassembly of the tool.
- Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other.
- D
- 41 mm
- C
- 17 mm
- C2
- 6.35 mm
- B
- 22 mm
- R
- 3.5 mm
- Shank Diameter
- 1/2 inch
- OL
- 81 mm
- Timber thickness min.
- 18 mm
- Timber thickness max.
- 22 mm
Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
---|---|---|---|---|---|
33/30X1/2 | 001 | Replacement arbor for an 8mm bore tool. |
1 | €15.36 |
