CNC/SMARTPLUS - CNC Machining Centre Smart Plus - UK sale only
CNC/SMARTPLUS

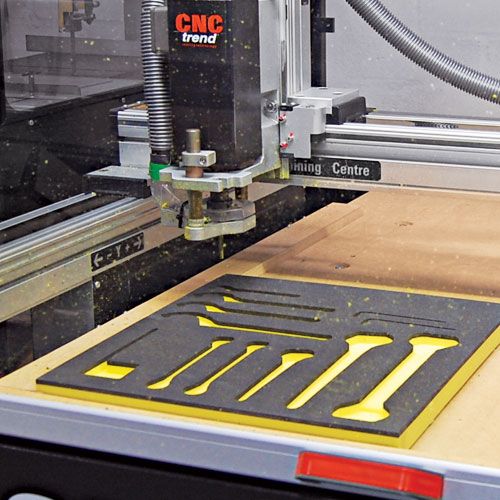

The CNC Smart Plus is a high performance floor mounted machine for improved routing productivity.
- CNC Smart Plus comes with a high frequency head and a maximum feed speed of 3 metres a minute.
- Solid construction with enclosed steel cabinet and floor stand meeting the requirements of EN 848 Part 3.
- CNC Smart Plus machine has stepper motors and lead screws.
- Onboard Goya console enables the machine to be controlled without being connected to a computer.
- Single phase power supply required.
- 3-axis control giving continuous movement.
- Machine uses industrial standard drivers suitable for the maximum feed speeds required.
- Supplied with Bach control software as standard.
- The price shown is the base price of the machine. Please contact your local CNC Dealer for a complete package to suit your requirements.
Click Here to download the CNC Dealer List.
- Click Here to request a printed CNC brochure.
- Width
- 1854 mm
- Depth
- 1530 mm
- Height door shut
- 1750 mm
- Height door open
- 2075 mm
- Max.movement X-axis
- 860 mm
- Max.movement Y-axis
- 920 mm
- Max.movement Z-axis
- 90 mm
- Max. cut feed rate X-axis
- 3-50 mm/s
- Max. cut feed rate Y-axis
- 3-50 mm/s
- Max. cut feed rate Z-axis
- 3-50 mm/s
- Max. non cut feed rate
- 50 mm/sec
- Positional accuracy
- <0.1 mm
- Power supply
- 220-230v
- Maximum wattage
- 2000W
- Maximum noise
- 80dB
- Weight
- 350kg
- Min. size doorway
- 1790x760 mm (For installation purposes)
- Spindle speed
- 3000-18000
- Maximum width of the workpiece
- 1070 mm
- Distance from the centre of the head to the left internal wall
- 105/965 mm
- Height of the table from the floor
- 815 mm
- Length of the table
- 1000 mm
- Movement of the motor support bracket on the Z-axis
- 170/245 mm
- Distance from the centre of the head and the front of the table
- -30/+890 mm
- Distance between the centre of the head and the Z-axis
- 105 mm
- Distance between the motor support and table
- 114/278 mm
- Distance between X-axis and table
- 225 mm
- End of life
- See below for Environmental Policy link
no spare products
Videos
CNC Smart Machining Video
Trend CNC machining centres overview.
Safety Sheets
Spares Diagrams
Product Questions
The movement range on the Trend CNC Smart Machining Centre is:
CNC/SMART1300: x axis 860mm y axis 1420mm z axis 90mm.
CNC/SMARTFAST: x axis 860mm y axis 1420mm z axis 90mm.
CNC/SMARTPLUS: x axis 860mm y axis 920mm z axis 90mm.
The weight of the CNC Smart Machining Centre is:
CNC/LITE/T10: 200KG
CNC/SMARTPLUS: 350KG
CNC/SMART1300: 420KG
CNC/SMARTFAST: 350KG
The CNC SMART requires one 240 volt supply to operate. Two of 240 volt supplies are required if using a vacuum pump.
The maximum height for the CNC SMART is 2075mm.
This is possible at the time of installation and not as a retro fit.
The HF motor unit has variable speed control up to 18000 rpm.
