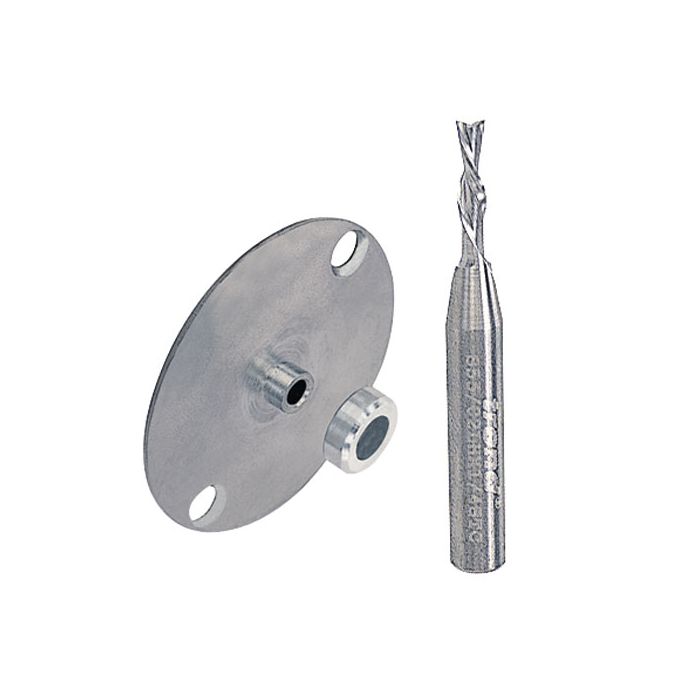

INLAY/KIT/A - Inlay kit with 3.2mm cutter 1/4 Solid tungsten

INLAY/KIT/A
€42.46

For use with T5 and other compatible routers. Comprises a 1/8 inch down cut spiral router cutter Ref. S55/02LHX1/4STC, guide bush and inlay collar.

  • By following a template and then removing the collar, an inlay pocket can be routed with matching inlay.
  • 1/4 inch shank solid carbide router cutter.
  • A Unibase may be required for certain makes & models of router including Trend T4E.
Guide bush ID
4.8 mm
Guide bush OD
7.9 mm
Collar OD
14.28 mm
Cutter D
1/8 inch
Cutter D
3.2 mm
Cutter C
1/2 inch
Cutter C
12.7 mm
Cutter OL
50.8 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
GB/COLL/7914 - Guide bush collar 7.9mm to 14.28mm GB/COLL/7914

Aluminium collar to fit guide bushes.

  • Enables single shaped templates to be used to cut perfectly matching pocket & inlay.
  • Collars have integral rubber 'O' rings to ensure collar secures onto guide bush.
  • Templates should be made with suitable sized corners for the collar being used.
  • The correct diameter straight cutter as indicated should always be used.
  • Guide bush not included.
€10.70
GB793 - Guide bush 7.93mm diameter (5/16) GB793

Guide bush guides the router when using a template.

  • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
  • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
€13.93
S55/02LHX1/4STC - Spiral down-cut  3.2mm diameter S55/02LHX1/4STC

Down-cut spirals are ideal for routing small workpieces or for holding workpieces secure in vacuum jigs.

  • Down-cut pushes woodchips below the work.
  • Two flute.
€38.15
WP-SCW/13 - M5 x 10mm countersunk slot machine screw WP-SCW/13

Replacement machine screw.

    €1.24
