TEMP/CDH/A - Template cabinet door hinge 35 & 26mm
TEMP/CDH/A

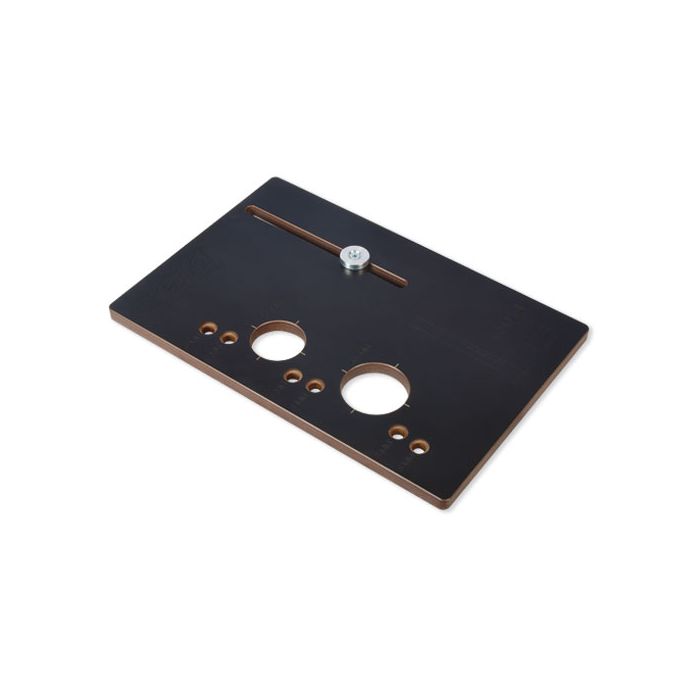

A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge.
- Cuts an accurate recess for either 26mm or 35mm circular hinges.
- Adjustable alloy edge guide for adjustment of recess position from top or bottom of door.
- Removable alloy edge guide for middle hinge recess.
- 3mm and 5mm location holes to accurately position the recesses relative to the edge of the door.
- Engraved centre sight lines.
- Pin holes reversible for left hand and right hand doors.
- Made from hard wearing 12mm thick high pressure laminate.
- Requires 12.7mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps.
- Size
- 355 mm x 320 mm x 12 mm
- Hinge dia.
- 26 mm and 35 mm
- 26 mm dia.
- 50 to 105mm*
- 35 mm dia.
- 50 to 190 mm*
* Hinge centre normally positioned 100 mm from top/bottom of door.
