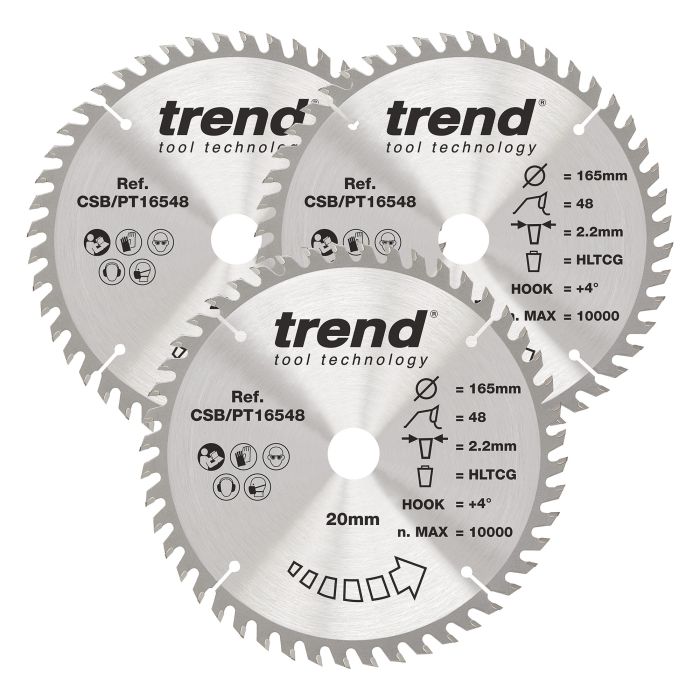

CSB/PT165/3PK - Trend Laminate / HPL Circular Saw Blade 165mm x 20mm x 48T, 3 Pack
A range of tungsten carbide tipped saw blades for cutting laminated and resin-based materials. For use in circular, plunge and table saws, Trend Laminate & HPL blades deliver precise, clean cuts. Ideal for laminated and veneered panels, compact laminate and melamine faced chipboard.
- Triple chip ground (TCG) tooth form with +4° hook delivers an ultra-fine finish in hard materials.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Bosch Pro GKS 18V-57 G, Bosch Pro GKS 18V-57, Bosch Pro GKS 18V-57-2, Bosch Pro GKS 18V-57-2 L, Bosch Pro GKS 18V-LI, Bosch Pro GKS 55+ G, Bosch Pro GKS 55+ GCE, Bosch Pro GKS 165, Bosch Pro GKT 55 GCE, Dewalt DCS391, Dewalt DCS520, Dewalt DCS565, Dewalt DWE550, Dewalt DWS520, Einhell TE-CS 18/165-1 Li, Einhell TE-PS 165, Evolution F165CCSL, Evolution R165CCS-Li, Evolution R165CCSL, FLEX CS 62 18.0-EC C, Hikoki C18DBAL, Hikoki C1806DA, Hikoki C1806DB, Hikoki C3606DA, Hikoki C3606DB, Hikoki C3606DUM, Hyundai HY2183, Kress KUE12.9, Makita BSS611, Makita DHS660, Makita DHS661, Makita DHS680, Makita DSP600, Makita DSP601, Makita DSS610, Makita DSS611, Makita HS012G, Makita HS6601, Makita SP001G, Makita SP6000, Metabo KS 18 LTX 57, Metabo KS 18 LTX 66 BL, Metabo KT 18 LTX 66 BL, Metabo MKS 18 LTX 58, Milwaukee M18 FPS55
Panel Trimming TCT Sawblades
A range of tungsten carbide tipped blades for wood and wood-based materials using circular and plunge saws. Positive hook, TCG profile and high tooth count delivers premium cut quality. Ideal for trimming sheet material such as furniture board, hardwood, plywood and chipboard laminate worktops.
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Triple Chip Ground (TCG) Profile with Positive Hook delivers an ultra-fine finish in hard materials.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Triple Chip Ground (TCG) Profile with Positive Hook delivers an ultra-fine finish in hard materials.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 6 1/2 inches
- D
- 165 mm
- Bore
- 20 mm
- Kerf
- 2.2 mm
- Plate thick
- 1.6 mm
- No. of Teeth
- 48
- Tooth form
- TCP
- Hook
- 4 degrees
- Quick Selector No.
- 8B.1
- Colour Code
- Purple
- Type
- Panel Trimming
- Cut Finish
- Super fine
Dewalt DWS520K
- Max rpm
- 10000
Ideal for compact laminate
