T5EB/MK2 - 1000W 1/4 inch Variable Speed Plunge Router 240V UK & Ireland only

Name: T5EB/MK2 - 1000W 1/4 inch Variable Speed Plunge Router 240V UK & Ireland only
SKU: T5EB/MK2
Price: 133.32 EUR
Availability: InStock

T5EB/MK2

Special Price

€159.98

Regular Price

€242.92

Add to Wish List

Details

High-performance lightweight plunge router with a classic Single-Handed Plunge Control, engineered to deliver reliable, fast, accurate cuts. Perfect for hinge cutting, dovetailing and timber profiling.

Single-Handed Plunge Control for intuitive and easy cutter depth adjustment.
Sliding Power Switch is conveniently located and supplied with a lock-on clip for table use. Compliant to EN 62841-2-17:2017
Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.
5-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
Spindle Lock for quick and easy cutter changes.
Plunge Depth Limiter is easy to set and prevents over-cutting.
3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Anti-Scratch Base Plate made from replaceable, smooth phenolic materials for a low-friction routing experience.

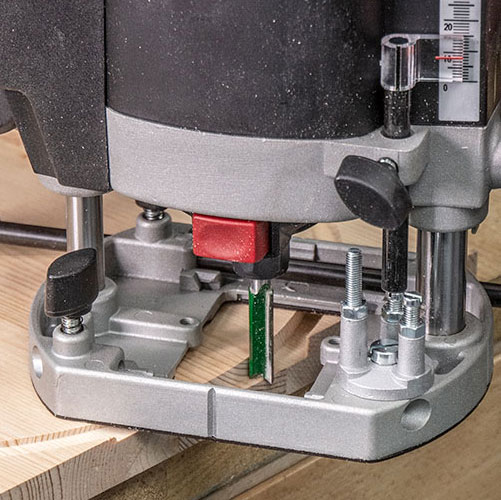

ER Style Collet utilises a double-locking safety design to prevent accidental cutter ejection and a multi-spline profile for concentric clamping to the cutter shank.
For UK & Eire sale only.
Not suitable for router table use.
*3 year warranty – Online registration required

Detail

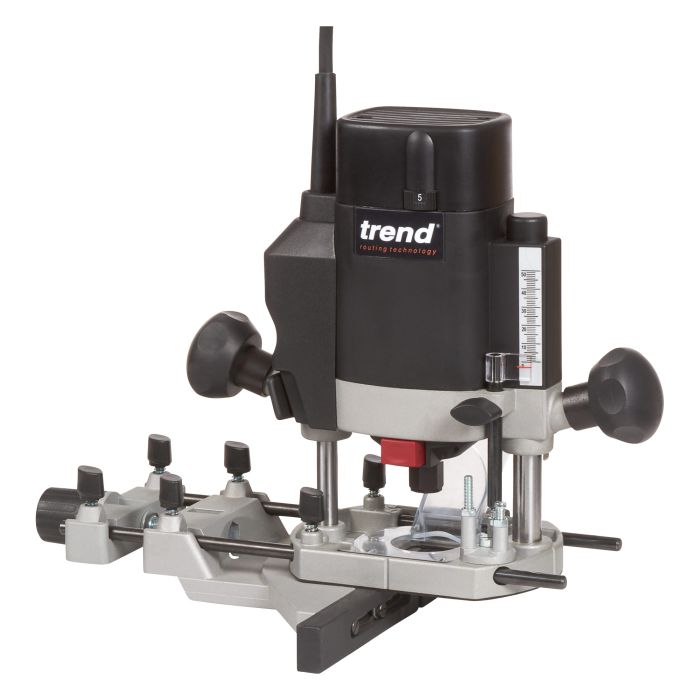

T5 1000W ¼” Variable Speed Plunge Router

High-performance lightweight plunge router with a classic Single-Handed Plunge Control, engineered to deliver reliable, fast, accurate cuts. Perfect for hinge cutting, dovetailing and timber profiling.

Powerful 1000w
Motor

50mm Plunge
Depth

5-Level Variable
Speed Control

Micro Adjustable
side-fence

Compact and
Lightweight

Trend Base
Configuration

With Online
Registration

Key Applications

Ideal for all hobbyist applications. Perfect for Decorative Mouldings and Joinery.

Lightweight Router with 50mm plunge depth, ideal for hinge and lock faceplate recessing.

Also supplied with a lock-on clip to hold power on when used in a router table.

Features

Powerful 1000W Soft Start Motor for medium duty applications with controllable startup.

Now compliant to the latest IEC 62841-2-17:2017 safety regulations with a new sliding power switch.

Full wave electronics keep the power supply constant under load for optimum performance at all levels.

Standard clip-in dust extraction port to keep the work area clear of dust.

Router plunging is controlled using the twist lock handle for maximum control.

Speed control dial for maximum control on different materials and cutter diameters.

Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.

Supplied with a 30mm direct fit guide bush for accuracy in jig and template work.

Supplied with a storage box.

Details

Single-Handed Plunge Control for intuitive and easy cutter depth adjustment.
Sliding Power Switch is conveniently located and supplied with a lock-on clip for table use. Compliant to EN 62841-2-17:2017.
Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.
5-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.

Spindle Lock for quick and easy cutter changes.
Plunge Depth Limiter is easy to set and prevents over-cutting.
3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Anti-Scratch Base Plate made from replaceable, smooth phenolic materials for a low-friction routing experience.
ER Style Collet utilises a double-locking safety design to prevent accidental cutter ejection and a multi-spline profile for concentric clamping to the cutter shank.

Click here for more information on the Trend Router Range

Spec

Duty Rating: Medium/Hobbyist/Trade
Motor Power: 1000 W
AC Voltage: 240 V
Plug Type: UK 3 pin
Supplied Collet Size: 1/4"
Plunge Stroke (Max): 50 mm
No-load speed: 9000-27000 rpm
Supplied Guide Bush: 20 mm
Fence Rod Length: 300 mm
Fence Rod Centres: 84 mm
Fence Rod Diameter: 8 mm
Cutter Diameter (Max): 40 mm
Dust Spout Internal Diameter: 35 mm
Sound Pressure (Lpa): 72 dB(A)1
Acoustic Pressure (Lwa): 92 dB(A)2
Hand/Arm Vibration: <2.5 m/s2
Weight (Net): 3.3kg
Power Cable Length: 2.9 m
Router Table Compatible: No
Base dimensions: Diameter: 150 mm, across flats=110 mm
End of Life: See below for Environmental Policy link

For UK & Ireland sale only

Customer Review

Spares

Product Ref	Description	Price for 1
BEAM/005	The point attaches to one of the router fixed rods. The pivot point is adjustable in height and this trammel can be used on most 8mm rods. For 8 mm diameter fence rods.	€13.06
CNS/T5/635	Precision multi-slit one-piece collet with combined nut. For Trend T5.	€32.17

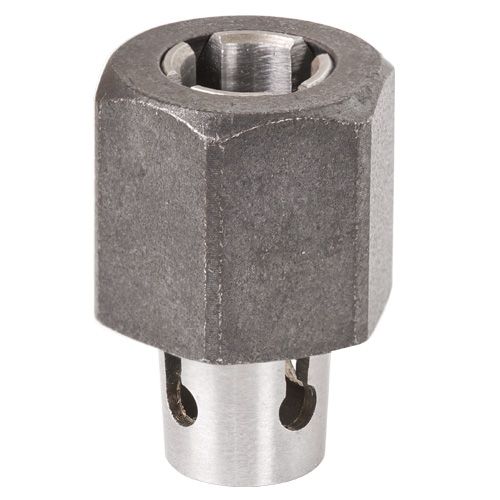

CNS/T5/8	Precision multi-slit one-piece collet with combined nut. For Trend T5.	€32.17
FHA/001	This fine height adjuster simply fits onto the router and allows fine adjustment of the cutter height. They are especially useful for accurate work such as when the router is held inverted in a router table. Suitable for the following TREND T3, T5, T5MK2 AXMINSTER AW635R CHALLENGE 1020W CHAMPION CPR850 DIY ER005 DEWALT DW613, 614, 615 DRAPER R850V EINHELL EOF 850SP,BOF 1050E ELU MOF 96(E) FERM FBF-6E, 8E 1050E FREUD FT850E NUTOOL NPT850, 102, HP6, MNPC900 POWERBASE 1020W PERFORMANCE POWER 1020W PERLES OF808(E), OF2-808(E) POWER DEVIL PDW5026, 5027 POWER BASE 1020W SILVERLINE SL762 VIRUTEX FR78, 78C WICKES 900W SEALEY SR1000 OSAKI 1020W	€26.04
GB20	Guide bush guides the router when using a template. Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers. Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.	€14.28
ROD/8X300	Replacement fence rod for the T5.	€21.73
T5MK2/LOCK	To trigger lock in 'on' position when used in table mode with a No-Volt Release switch fitted.	€6.32
WP-NUT/05	Replacement nut.	€1.27
WP-SCW/13	Replacement machine screw.	€1.27
WP-SCW/48	Machine countersink screw.	€1.27
WP-T5/003A	Replacement base for the T5 V2	€101.51
WP-T5/005	Replacement spring for the T5.	€2.36
WP-T5/006	Replacement ball for the T5.	€2.36
WP-T5/008A	Replacement revolving guide for the T5 V2	€12.43
WP-T5/010	Replacement threaded pin for the T5.	€2.36
WP-T5/011	Replacement thumb knob for the T5.	€3.44
WP-T5/014	Replacement depth stop for the T5.	€5.81
WP-T5/015A	Replacement grip knob handle for the T5 V2.	€10.32
WP-T5/016	Replacement Spring 12mm for thumb knob T5.	€2.36
WP-T5/018	Replacement bearing for the T5.	€9.68
WP-T5/021	Replacement screw for the T5.	€3.44
WP-T5/024	Replacement cable guard for the T5.	€2.36
WP-T5/035	Replacement bearing for the T5.	€8.58
WP-T5/038	Replacement threaded pin for the T5.	€2.36
WP-T5/041	Replacement screw for the T5.	€2.36
WP-T5/046	The side fence has a fine micro adjuster to enable precise adjustment of the position of the cut. The fence cheeks are wide to provide good support and adjustable to suit the size of the cutter. An optional second fence will provide extra support when edging or mortising narrow timber. The plastic sliding cheeks can be adjusted to reduce cutter aperture. Fence can be used with Elu MOF96, Dewalt DW613, DW615 and other similar routers with fence rods of 8mm diameter and 84mm centres.	€82.80
WP-T5/047A	Replacement side fence casting for the T5.	€28.36
WP-T5/049A	Replacement side fence cheeks for the T5.	€5.81
WP-T5/050	Replacement slider base plate for the T5.	€19.14
WP-T5/060A	Replacement spring for spindle lock for T5 V2.	€2.36
WP-T5/061A	Replacement spindle lock body for the T5 V2.	€17.34
WP-T5/062	Replacement spindle lock for the T5.	€2.36
WP-T5/063A	Replacement screw for the T5.	€4.07
WP-T5/065	Replacement screw for the T5.	€2.36
WP-T5/069A	Replacement rubber sleeve for T5 V2.	€5.81
WP-T5/074A	Replacement dust extraction spout for the T5 V1 and V2.	€10.32
WP-T5/077	The fence cheeks are wide to provide good support and adjustable to suit the size of the cutter. An optional second fence will provide extra support when edging or mortising narrow timber. The plastic sliding cheeks can be adjusted to reduce cutter aperture. Fence can be used with Elu MOF96, Dewalt DW613, DW615 and other similar routers with fence rods of 8mm diameter and 84mm centres.	€38.42
WP-T5/088	Replacement spindle lock button T5 V2.	€3.44
WP-T5/089	The spindle lock housing for the T5 router.	€3.44
WP-T5E/055A	Replacement speed control circuit board for the T5 V2.	€121.64
WP-T5E/087	Replacement magnetic disc T5 V2.	€11.38
